INDUSTRIAL FABRIC
THERMAL INSULATION
COATED FABRIC

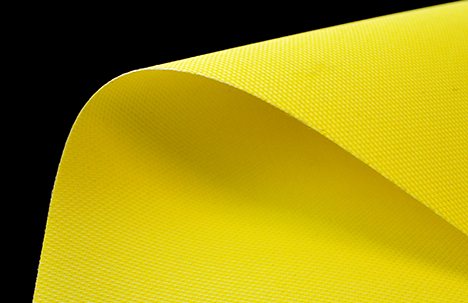

Silicone Coated Fabric

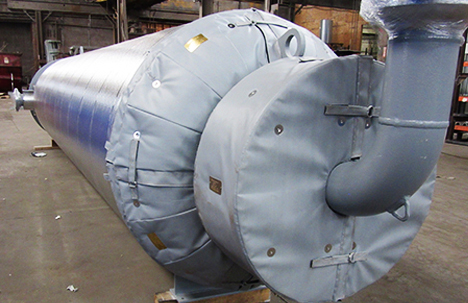

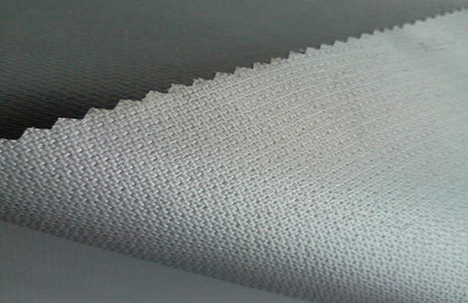

Silicone Coated Fiberglass fabric functions at a temperature of 260°C. Its benefit include non-tearing, washability, and rubbery tacky surface. They are widely used as the industry standard of insulation material. We currently offer black and grey color double side coated silicone fabrics.
SILICONE COATED FABRIC
| Product Code | Description | Weight (g/m2) |
Thickness (mm) |
Max Operating Temperatur (C) |
Weave Type |
Color | Width (mm) |
Roll Length (m) |
Application | Spec (PDF) |
|---|---|---|---|---|---|---|---|---|---|---|
| 430-SR | Double Sided Silicone | 540 | 0.43 | 260 | Satin | Grey | 1550 | 50 | Insulation Jacket,Expansion Joints,Fire Curtains,Welding Blanket |  |
| RS600-SR-R | Double Slide Silicone Inside : Silica Outside:Silicone |
860 | 0.76 | 260 | 8H Satin | Red | 1500 | 50 | Insulation Jacket,Expension Joints,Fire Curtains,Welding Blanket | |
Flame Retardant Glass Fabrics

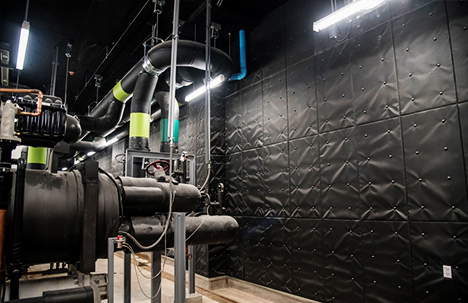

Our Flame Retardant fiberglass fabrics can be adapted to various applications such as welding curtains, sound insulation panels, or or even fire blankets. Multiple colors are available for OEM. Contact us for our technical support and additional product requirements.
FLAME RETARDANT GLASS FABRICS
| Product Code | Description | Weight (g/m2) |
Appearance | Density (yarn/in) |
Thickness (mm) |
Width (mm) |
Roll Length (m) |
Usage | Spec (PDF) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Warp | Weft | |||||||||
| 1200-AR | Thermai Insulation | 103 | Black | 17.5 | 18 | 0.15 | 1018 | 250 | Machine Part Fabrication | |
| 3025R-AC | Thermai Insulation and Sound Absorption |
170 | Black or White |
34 | 24 | 0.20 | 140-300/ 1300/1400 |
150/500 | Theaters and Recrdding Studio Walls | |
| 1815AS-AR | FiRe Resistant Coating with Sound Absorption Properties |
185 | Black or White |
34 | 30 | 0. | 140-300/ 1300/1400 |
150 | Theaters and Recrdding Studio Walls | |
| 1800-24 | stiffening treatment | 225 | White | 44 | 34 | 0.2 | 130-240/ 360 |
50 | Automotive Part | |
Laminated Fabrics

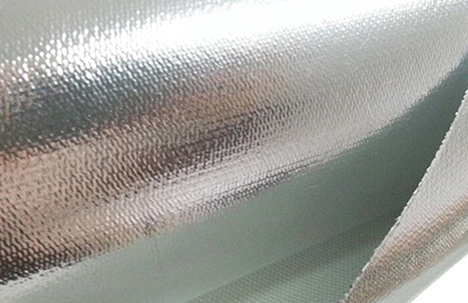

Fiberglass of different thickness can be laminated with aluminum foil for heat resistant and reflective purposes. The following are some examples of our standard products. Contact us for your required specification.
LAMINATED FABRICS
| Product Code | Description | Weight (g/m2) |
Appearance | Density (yarn/in) |
Thickness (mm) |
Width (mm) |
Roll Length (m) |
Usage | Spec (PDF) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Warp | Weft | |||||||||
| 1200-A1-U | 17um Aluminium Laminated Fabric | 162 | White | 17.5 | 18 | 0.17 | 125/250/ 1018 |
100/250 | Airducts and Moisture Prevention | |
| 4170-A1-U | 17um Aluminium Laminated Fabric | 634 | White | 17 | 17 | 0.6 | 1018/1020 | 50 | Airducts and Moisture Prevention | |

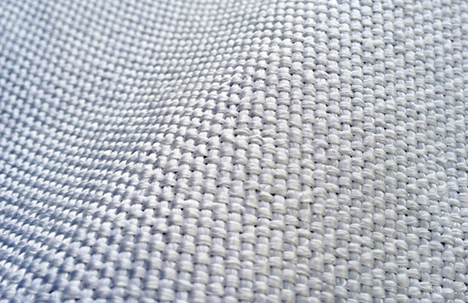

LOOMSTATE /

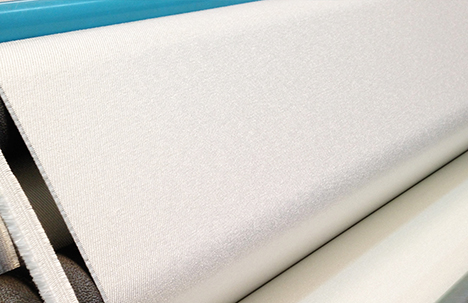

TEXTURIZED GLASS FABRIC
TEXTURIZED GLASS FABRIC

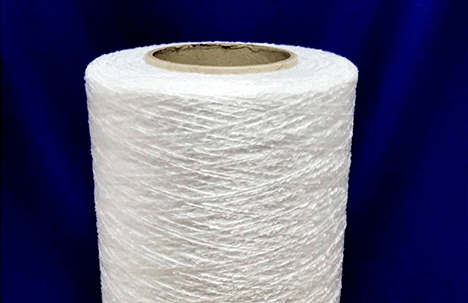

Texturized Glass Fabric can be used in both insulation and filtration application. The fluffiness of the fabric causes temperature to be trapped inside . May it be silicone, polyurethane, pvc, or PTFE, Asia Kangnam loomstate fabrics are manufactured for highest processability.
LOOMSTATE / TEXTURIZED GLASS FABRIC
| Product Code | Description | Weight (g/m2) |
Thickness (mm) |
Max Operating Temperatur (C) |
Weave Type |
Color | Width (mm) |
Roll Length (m) |
Application | Spec (PDF) |
|---|---|---|---|---|---|---|---|---|---|---|
| 116-HS | Woven Filament E Galss Fabric | 110 | 0.10 | 550 | Plain | White | 1050 | 300 | Thermal Insulation,Heat Protection,Base Material for Coating | |
| 430-HS | Woven Filament E Galss Fabric | 430 | 0.42 | 550 | 4H Satin | White | 1010/1270 | 200, 300 | Thermal Insulation,Heat Protection,Base Material for Coating | |
| 3600-HS | Woven Filament E Galss Fabric | 445 | 0.45 | 550 | 3x1 Twill | White | 1010/1200/1500 | 100 | Thermal Insulation,Heat Protection,Base Material for Coating | |
| 4170-HS | Woven Filament E Galss Fabric | 570 | 0.5 | 550 | Plain | White | 1020 | 100 | Thermal Insulation,Heat Protection,Base Material for Coating | |
| 2025-HS | Texturized Woven E Glass fabric | 576 | 0.7 | 550 | Plain | White | 1524 | 230, 275 | Thermal Insulation,Heat Protection,Base Material for Coating | |
| 4800-HS | Customized E Galss Fabric | 480 | 1.55 | 550 | Leno | White | 950/1220 | 153 | Electrica Appliance Insulation | |
| 6000-HS | Customized E Galss Fabric | 600 | 1.85 | 550 | Leno | White | 1220 | 153 | Electrica Appliance Insulation | |
| 7577G-HS | Woven Filament E Galss Fabric | 730 | 0.90 | 550 | Double Twill | White | 1040/1100 | 300 | Thermal Insulation,Heat Protection,Base Material for Coating | |
HEAT TREATED GLASS FABRIC

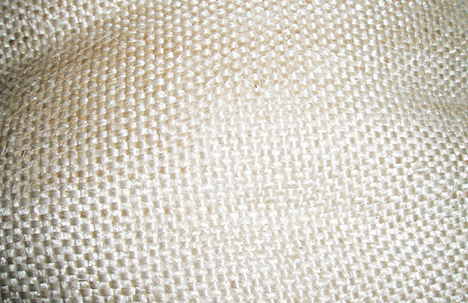

Glass Fabrics are heat treated to remove any remnants of sizing agents that comes with the yarn. The process not only weave locks the fabric for easy handling but also to remove the chance of smoke occuring when used at high temperature.
HEAT TREATED GLASS FABRIC
| Product Code | Description | Weight (g/m2) |
Thickness (mm) |
Max Operating Temperatur (C) |
Weave Type |
Color | Width (mm) |
Roll Length (m) |
Application | Spec (PDF) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3600-SB | Heat Treated Fiberglass | 445 | 0.45 | 550 | 3x1 twill | Brown | 1010/1200/1500 | 46 | Welding Blanket,Insulation Blanket | |
| 2025-SB | Texturized and heat treated | 576 | 0.7 | 550 | Plain | Brown | 1524 | 46 | Welding Blanket,Insulation Blanket | |
| 3884-SB | Heat Treated Fiberglass | 890 | 0.74 | 550 | 8H Satin | Brown | 1010/1524 | 50 | Welding Blanket,Insulation Blanket | |

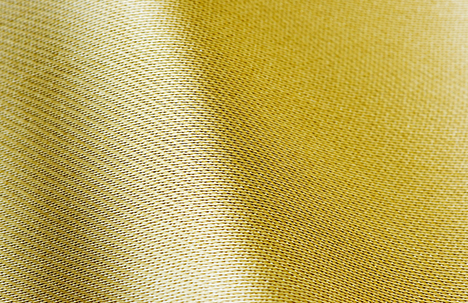

HIGH SILICA FABRIC

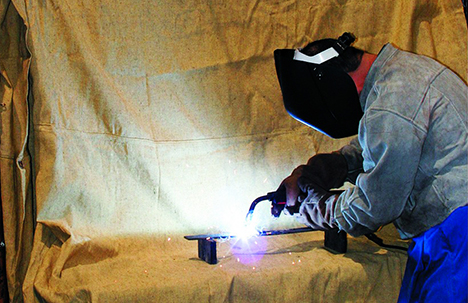

High silica fabrics are used with the most extreme temperature resistance is required (900-1100 °C). May it be welding curtains in furnaces or inside of an insulation jacket for machine parts. Our high silica fabrics comes with vermiculite coating for easy handling and additional temperature resistance.The silica content of our fabric exceeds 98%.
HIGH SILICA FABRIC
| Product Code | Description | Weight (g/m2) |
Thickness (mm) |
Max Operating Temperatur (C) |
Weave Type |
Color | Width (mm) |
Roll Length (m) |
Application | Spec (PDF) |
|---|---|---|---|---|---|---|---|---|---|---|
| 651v-SILICA | Silica With Vermiculite Finishing | 570 | 0.7 | 1000 | 8H Satin | Gold | 920 | 50 | Welding Curtain,Furnance Curtanin,Fire Jacket | |
| 3788v-SILICA | Silica With Vermiculite Finishing | 1000 | 1.5 | 1000 | 12 Satin | Gold | 920 | 50 | Welding Curtain,Furnance Curtanin,Fire Jacket | |

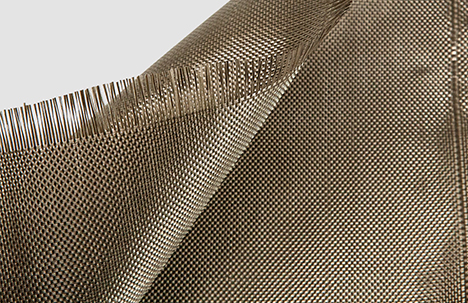

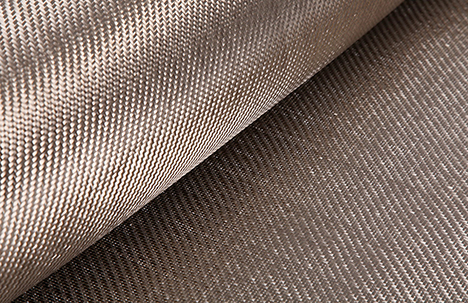

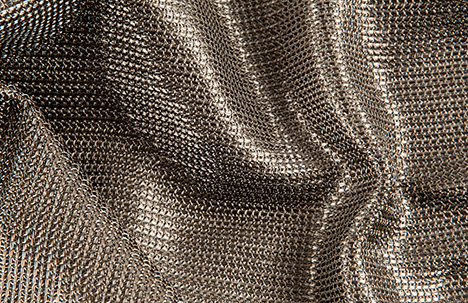

BASALT FABRIC

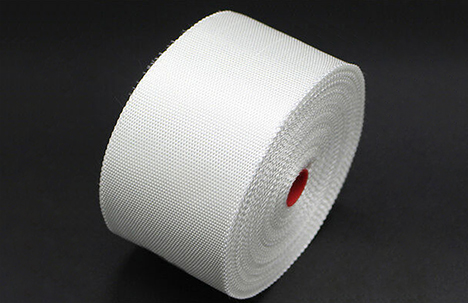

AUXILIARY INSULATION PRODUCTS

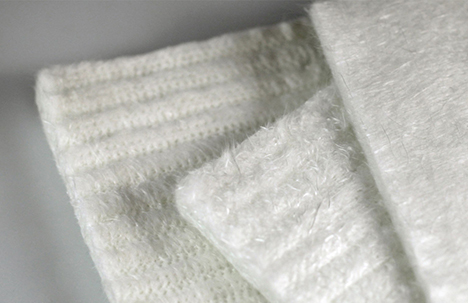

E-Glass Insulation Tapes and Needle Mats are used for heavy insulation alongside our other fiberglass products. We produce different widths, thickness, and texturized tapes. Contact us for more information.
GLASS TAPE
| Product Code | Thickness (mm) |
Roll Length (m) |
Width (mm) |
Spec (PDF) |
|---|---|---|---|---|
| RB16 | 1.6 | 30 | 1&2 | |
| RB30 | 3.0 | 30 | 1&2 | |
| ET 200 | 0.2 | 30 | 2 | |
| ET 320 | 0.35 | 30 | 2 | |
E-GLASS WOOL MAT
| Product Code | Thickness (mm) |
Weight (g/m2) |
Density (kg/m3) |
Width (mm) |
Roll Weight (kg) |
Roll Length (m) |
Spec (PDF) |
|---|---|---|---|---|---|---|---|
| EWM04 | 4 | 600 | 125 | 1000 | 30 | 50 | |
| EWM10 | 10 | 1500 | 125 | 1000 | 30 | 20 | |
| EWM15 | 15 | 2000 | 130 | 1000 | 30 | 15 | |
| EWM25 | 25 | 4200 | 160 | 1000 | 42 | 10 | |
