INDUSTRIAL FABRIC
FILTRATION
ALUMINUM FILTRATION

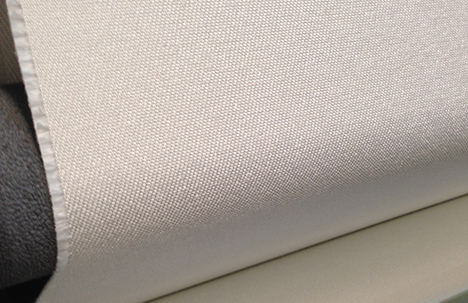

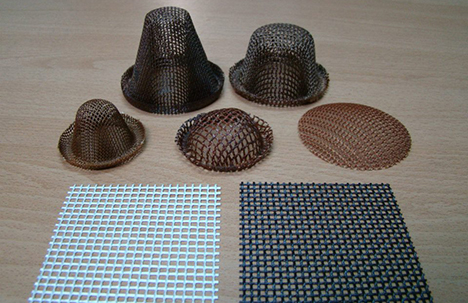

A selection of fiberglass mesh for the filtration of the molten aluminum process is available here. Choose your mesh size, weight, and coatings below. Our mesh fabrics can be easily manufactured into combo bags or round discs.
ALUMINUM FILTRATION FABRIC
| Product Code | Weight (g/m2) |
Weave Type |
Opening Size (mm2) |
% Open Area (mm2) |
Density (yarn/in) |
Thickness (mm) |
Width (mm) |
Roll Length (m) |
Spec (PDF) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Warp | Weft | |||||||||
| 310RT-AC | 125 | Leno | 2.82 | 70 | 10.5 | 10.5 | 0.30 | 900 | 100 |  |
| 418-AC | 312 | Plain | 0.39 | 20 | 17.5 | 18 | 0.35 | 1020 | 100 | |
| 410-AC | 358 | Plain | 2.15 | 55 | 10 | 10 | 0.70 | 1220 | 100 | |
| 411-AC | 399 | Plain | 1.15 | 46 | 11 | 11 | 0.65 | 1220 | 100 | |
| 412-AC | 435 | Plain | 0.94 | 44 | 12 | 12 | 0.70 | 1220 | 100 | |
| 413-AC | 470 | Plain | 0.52 | 38 | 13 | 13 | 0.70 | 1220 | 100 | |
| 432-HS | 600 | Mock Leno | 2.00 | 55 | 32 | 24 | 0.65 | 1220 | 50 | |
| 428-0S | 350 | Mock Leno | 28 | 24 | 0.70 | 1200 | 50 | |
||
| EM62-HS | 600 | Mock Leno | 32 | 24 | 0.65 | 1000 | 50 | |
||
| 432-OS | 600 | Mock Leno | 32 | 24 | 0.65 | 1000 | 50 | |
||
AIR FILTRATION

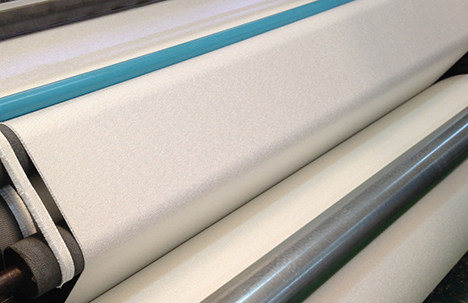

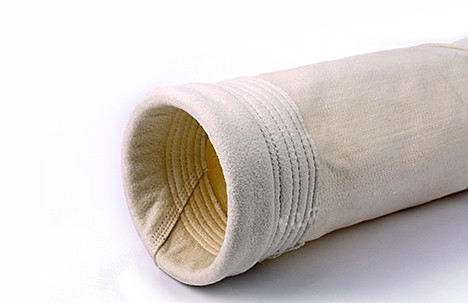

Woven fiberglass fabrics are used to manufacture air filtration bags of high temperature dust. Each fiberglass fabrics can be coated and membraned with PTFE to resist scratching, improve air permeability tolerance, and extending life time.
AIR FILTRATION FABRIC
| Product Code | Weight (g/m2) |
Weave Type |
Finish | Air Permeability CFM | Density (yarn/in) |
Thickness (mm) |
Width (mm) |
Roll Length (m) |
Spec (PDF) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Warp | Weft | |||||||||
| 7577MY-HS | 740 | Doubie Twill | Untreated | 60-70 | 48 | 40 | 0.9 | 1650 | 303 | |
| 7577MY-P11SM | 800 | Doubie Twill | PTFE Coated | 4-8 | 48 | 40 | 0.9 | 1650 | 300 | |
