COMPOSITE MATERIAL
WOVEN FABRICS
Woven fabrics are perfect for hand layup, vacuum infusion, Light-RTM, and also to me made into prepregs for the ease of use. Asia Kangnam also offers prepregging of all its fabrics.

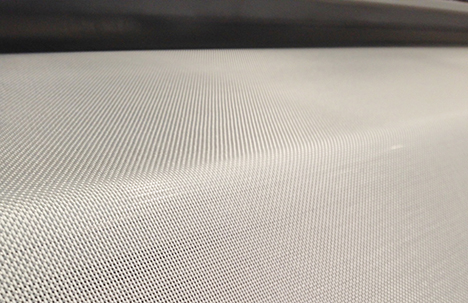

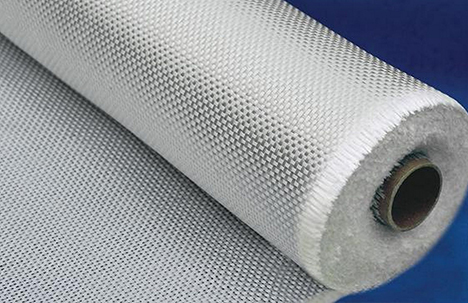

GLASS FABRIC
FIBERGLASS FABRICS
Product Code Weight
(g/m2)		 Weight
Type		 Coating Code Densityt
(yarn/in)		 Warp Weft Width
(mm)		 Roll Length
(m)		 Spec
(PDF)
P303 25 Plain N3 60*52 D900 1/0 D900 1/0 1030 200
304 30 Plain HS 51*31 D450 1/0 D900 1/0 1030 200
L05P 48 Plain N2 60*47 D450 1/0 D450 1/0 1040 200
L06P 60 Plain HS / N2 24*22 G125 1/0 E150 1/0 1000/1270 200
1400 78 Plain HS 14*14 G75 1/0 G75 1/0 635/1000 250
8P1 82 Plain N2 30*32 G150 1/0 G150 1/0 1020/1270 200
L09P 92 Plain N2 35*31 G150 1/0 G150 1/0 1020/1270 250
1200 98 Plain HS/N2 17.5*18 G75 1/0 G75 1/0 1018 250
2116 106 Plain N2 60*58 E225 1/0 E225 1/0 1050 300
116 110 Plain N2 60*60 D450 1/2 D450 1/2 1050 300
1522 125 Plain HS/N2 24*22 G75 1/0 G150 1/2 27"/30" 200
1522T 125 Plain HS/N2 24*22 G150 1/2 G150 1/2 27"/30" 200
1579A 127 Plain HS/N2 30*16 G150 1/2 G75 1/0 25"/27"/30"/
40"/50"		 200
3024 150 Plain HS/N2 30*24 G75 1/0 G75 1/0 1000/1270 200
3025R 160 Plain HS/N2 34*24 G75 1/0 G75 1/0 1400 150
7537 160 Plain N2 18*22 G75 1/2 G75 1/0 30" 200
2190 185 Plain HS/S1/N2 17.5*16 G37 1/0 G37 1/0 1150 100
2200 185 Plain HS/N2 16.5*17 G75 2/0 G37 1/0 1000 100
7533 200 Plain HS/N2 17.5*18 G37 1/0 G75 1/2 30"/50" 200
7533T 200 Plain HS/N2 18*18 G75 1/2 G75 1/2 30" 200
7534 200 Plain HS/N2 24*14 G75 1/2 G37 1/0 30"/40" 200
418 295 Plain HS 17.5*18 G75 1/3 G75 1/3 1020 200
UG300 320 Unidirectional HS 9*3 DR900 Hot melt 1000 100
1522P 130 Custom HS 25*22 Innegra/G75 1/0 Innegra/G150 1/2 1270 200
38B0 380 Herringbone HS 16*16 DR300 DR300 1250 100
MULTIXIAL E-GLASS
Product Code Style Weight
(g/sqm)		 Thickness
(mm)		 Width
(mm)		 Roll Length
(m)		 Spec
(PDF)
DB400-E Biaxial +/-45 400 0.43 1270 52

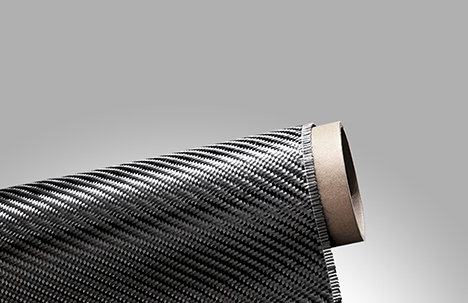

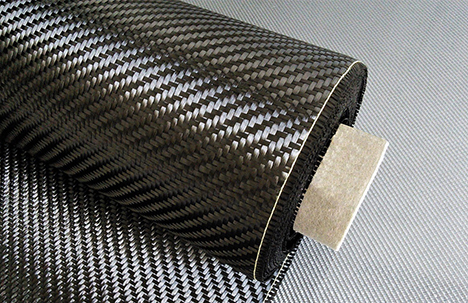

CARBON FABRIC
Carbon Fabrics is the ultimate reinforcing materials which adds strength and beauty to your final products. Our weave set finishing increases the handling when it comes to asthetic layups. At Asia Kangnam, we utilizes design software to create unique patterns of woven fabrics not available elsewhere. Ask for AKCustomTT to accentuate your product with our one-of-a-kind carbon patterns today.
3K CARBON FABRICS
Product Code Style Weight
(g/sqm)		 Thickness
(mm)		 Width
(mm)		 Roll Length
(m)		 Spec
(PDF)
C317P Plain 165 0.23 1350 50
C320P Plain 200 0.25 1000, 1270, 1500 50, 100
C320T 2x2 Twill 200 0.25 1000, 1270, 1500 50, 100
C324T 2x2 Twill 240 0.30 1000, 1270, 1500 50, 100
C324P Plain 240 0.30 1500 50, 100
C323E Honey Comb 230 0.30 1000, 1270 50, 30
C326H Diamond 260 0.33 1000 50
C327T 4x4 Twill 270 0.30 1500 50
12K CARBON FABRICS
Product Code Style Weight
(g/sqm)		 Thickness
(mm)		 Width
(mm)		 Roll Length
(m)		 Spec
(PDF)
C1242P Plain 420 0.60 1000, 1270,1500 30/50
C1242T Twill 420 0.60 1000, 1270,1500 30/50
C1260P Plain 600 0.70 1000, 1270,1500 30/50
C1260T Twill 600 0.70 1000, 1270,1500 30/50
UNIDIRECTIONAL CARBON
Product Code Style Weight
(g/sqm)		 Thickness
(mm)		 Width
(mm)		 Roll Length
(m)		 Spec
(PDF)
UC200 Unidirectional 200 0.25 500, 1000 50
UC300 Unidirectional 300 0.30 500, 1000 50
UC400 Unidirectional 420 0.42 500, 1000 50
MULTIXIAL CARBON
Product Code Style Weight
(g/sqm)		 Thickness
(mm)		 Width
(mm)		 Roll Length
(m)		 Spec
(PDF)
DB150-C Biaxial +/-45 150 0.19 1270 50
DB200-C Biaxial +/-45 200 0.25 1270 50
DB300-C Biaxial +/-45 300 0.37 1270 50
DB400-C Biaxial +/-45 400 0.50 1270 50
