INDUSTRIAL FABRIC
CONSTRUCTION REINFORCEMENTS
WATERPROOFING AND
REINFORCEMENT
REINFORCEMENT

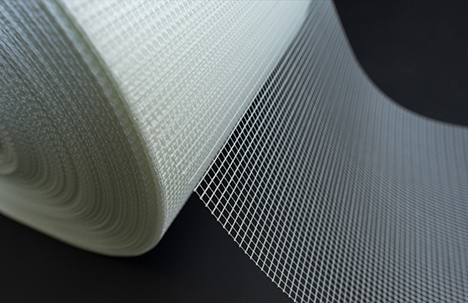

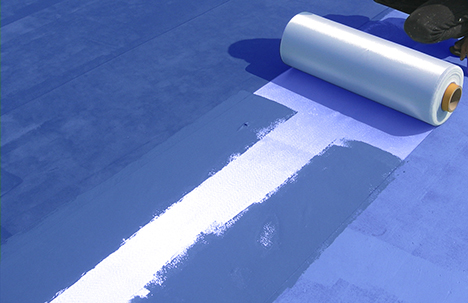

E-Glass mesh can be used to reinforce marble slabs, joining cracks on walls, or used with waterproofing paint. Due to the high strength to weight ratio of our meshes, their application in the reinforcement field is virtually endless.
GLASS MESH
| Product Code |
Weight (g/m2) |
Weight Type |
Density (yarn/in) |
Mesh Opening (mm) |
Thickness (mm) |
Width (mm) |
Roll Length (m) |
Spec (PDF) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Warp | Weft | Warp | Weft | |||||||
| 103-AC | 43 | Leno | 3.0 | 4.0 | 8.1 | 6.0 | 0.30 | 1040, 1200 | 100 |  |
| 107-AC | 70 | Leno | 6.7 | 5.2 | 3.6 | 4.2 | 0.20 | 1000-2000 | 100/300 | |
| 109-AC | 54 | Leno | 9.0 | 9.0 | 2.7 | 2.4 | 0.20 | 1000 | 100 | |
| 206-AC | 144 | Leno | 6.0 | 6.0 | 3.6 | 3.5 | 0.40 | 1000 | 50/100 | |
| 104-AC | 75 | Leno | 4.0 | 4.0 | 5.5 | 4.8 | 0.35 | 1000 | 1000 | |
| 106-AC | 150 | Leno | 6.0 | 5.5 | 3.7 | 3.6 | 0.30 | 1000 | 50 | |
GLASS FABRIC
| Product Code |
Type | Weight g/m2 |
Weave Type |
Density (yarn/in) |
Thickness (mm) |
Width (mm) |
Roll Length (m) |
Spec (PDF) |
|
|---|---|---|---|---|---|---|---|---|---|
| Warp | Weft | ||||||||
| 1200-AC | Acrylic Coated | 106 | Plain | 17.5 | 18 | 0.15 | 1018 | 100/250 | |
| 1400-AC | Acrylic Coated | 82 | Plain | 14 | 14 | 0.15 | 1000 | 100/250 | |
CHOPPED STRAND MAT
| Product Code |
Weight g/m2 |
Width (mm) |
Roll Weight (kg) |
Moisture (%) |
Binder Content (%) |
Area per Roll (Sqm.) |
Type | Spec (PDF) |
|---|---|---|---|---|---|---|---|---|
| CSM10E | 100 | 1270 | 32 | 0.5 | 10 | 360 | Emulsion | |
| CSM30E | 300 | 1040 | 33 | 0.5 | 4 | 100 | Emulsion | |
ALKALI RESISTANT REINFORCEMENT

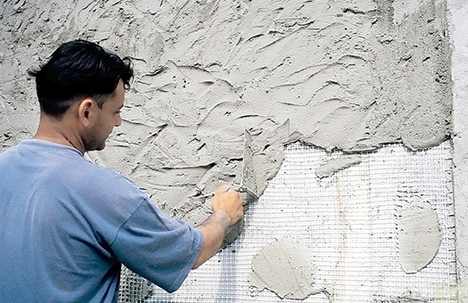

Pure Alkali Resistant Mesh is made from Alkali Resistant Rovings. Asia Kangnam, produces specialty mesh products which are used inside cement boards, walls, and buildings which require resistant to corrosion.
AR CHOPPEDSTRAND
| Product Code |
Zirconium Contect (%) |
Filament Diameter (mm) |
Chopped Length (mm) |
Moisture Content (%) |
Loss on Ignition (%) |
Usage | Spec (PDF) |
|---|---|---|---|---|---|---|---|
| ARC-6 | 16.7 | 13 | 6 | 0.2 | 1.85 | AntiCrack for GRC Components | |
| ARC-12 | 16.7 | 13 | 12 | 0.2 | 1.85 | Reinforcement and Precasts | |
AR SPRAY ROVING
| Product Code | Zirconium Contect (%) |
Linear Density (tex) |
Weight/Roll | Tensile Strength (Mpa) |
Moisture (%) |
Loss on Ignition (%) |
Usage | Spec (PDF) |
|---|
