COMPOSITE MATERIALS

PREPREG

• System

  G-Product

  GLASS PREPREG
  Product Code	Style	Weight (g/sqm)	R/C (%)	Thickness (mm)	Width (mm)	Roll Length (m)
  304	Plain	30	40-45	0.05	1030	100
  L05P	Plain	48	40-45	0.06	1040	50
  L06P	Plain	60	40-45	0.08	1000	50
  L09P	Plain	92	40-45	0.09	1000	50
  1400	Plain	78	40-45	0.15	1000	50
  1200	Plain	98	40-45	0.15	1018	50
  3024	Plain	150	40-45	0.15	1000	50
  2190	Plain	185	40-45	0.25	1150	50
  2100	Plain	195	40-45	0.2	1018	50
  418	Plain	295	40-45	0.35	1020	50
  1522P	Custom	130	40-45	0.15	1270	50
  38B0	Herringbone	380	40-45	0.4	1250	50
  4170	Plain	570	40-45	0.55	1020	50
  WR400T	2x2 Twill	400	40-45	0.35	1000	50
  UG300	Unidirectional	300	40-45	0.45	1000	50
  WR330	Plain	300	40-45	0.3	1000	50

  GLASS BIAXIAL PREPREG
  Product Code	Style	Weight (g/Sqm)	R/C (%)	Thickness (mm)	Width (mm)	Roll Length (m)
  DB400E	Biaxial +/-45	400	40-45	0.45	1270	50
  DB600E	Biaxial +/-45	600	40-45	0.65	1270	50

  C-Product

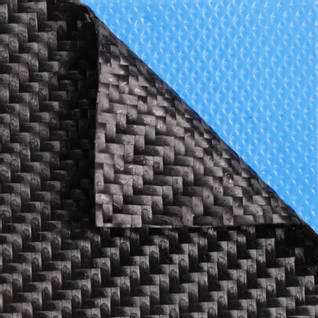

  3K CARBON PREPREG
  Product Code	Style	Weight (g/sqm)	R/C (%)	Thickness (mm)	Width (mm)	Roll Length (m)
  C317P	Plain	165	45-50	0.23	1000/1270	25
  C320P	Plain	200	45-50	0.25	1000/1270	25
  C320T	2x2 Twill	200	45-50	0.25	1000/1270	25
  C324T	2x2 Twill	240	45-50	0.3	1000/1270	25
  C324P	Plain	240	45-50	0.3	1270	25
  C323E	Honey Comb	230		0.3	1270	25
  C327T	4x4 Twill	270	45-50	0.3	1270	25
  C323E	Honey Comb	230	45-50	0.3	1270	25
  C326H	Hounds Tooth	260	45-50	0.3	1270	25

  12K CARBON PREPREG
  Product Code	Style	Weight (g/sqm)	R/C (%)	Thickness (mm)	Width (mm)	Roll Length (m)
  C1242P	Plain	420	40-45	0.41	1000	25
  C1242T	2x2 Twill	420	40-45	0.41	1000	25
  C1260P	Plain	600	35-40	0.65	1000	25
  C1260T	2x2 Twill	600	35-40	0.65	1000	25

  CARBON FORGED
  Product Code	Style	Weight (g/sqm)	R/C (%)	Thickness (mm)	Width (mm)	Roll Length (m)
  CF300	Random carbon forged	300	40-45	0.35	1000	25

• Resin-G2

  UD

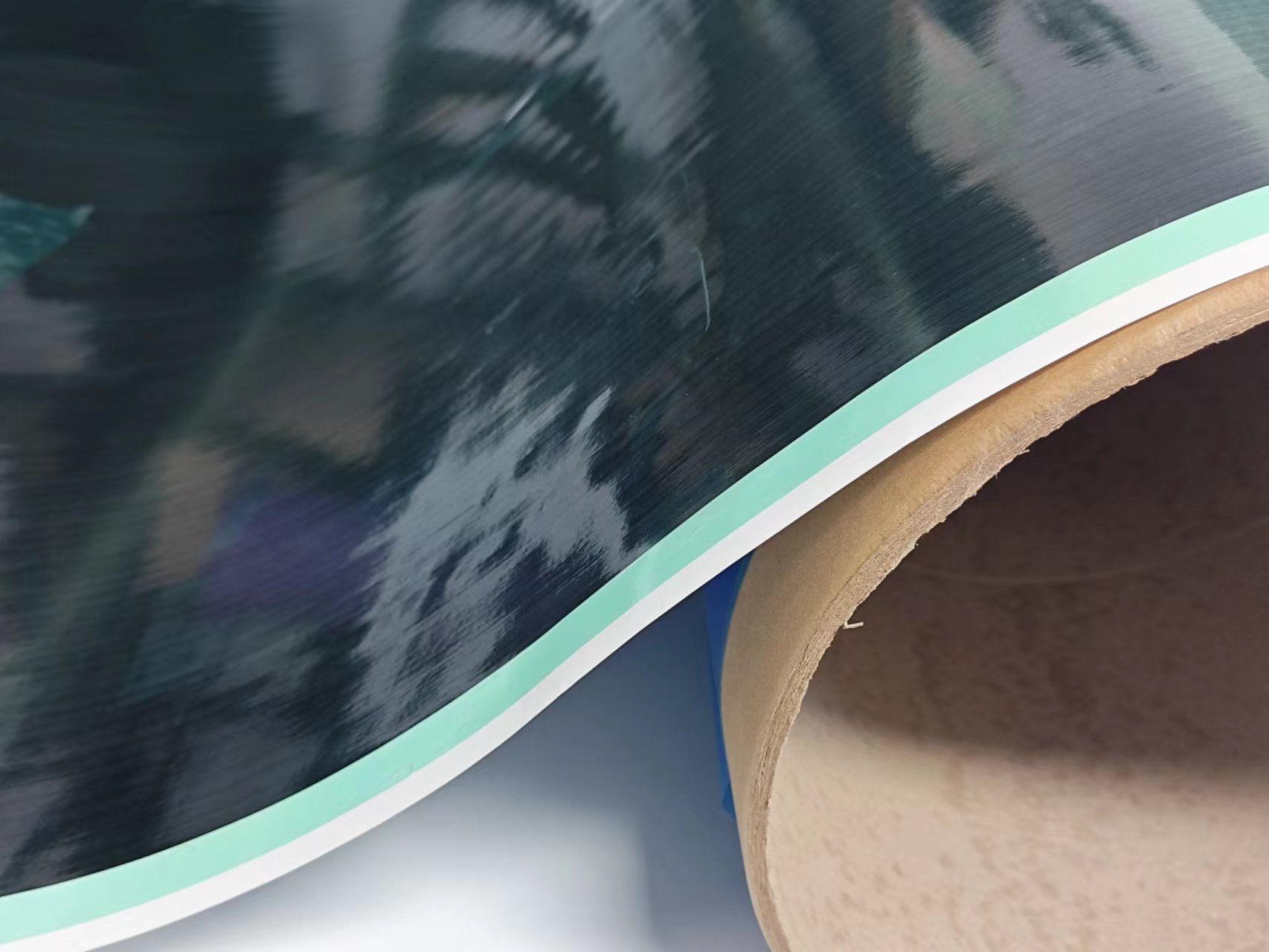

  UD CARBON PREPREG
  Product Code	Style	Weight (g/sqm)	Resin Weight (g/sqm)	Total Weight (g/sqm)	Thickness (mm)
  SUP100	Unidirectional	100	49	149	0.097
  SUP125	Unidirectional	125	62	187	0.122
  SUP150	Unidirectional	150	74	224	0.146
  SUP175	Unidirectional	175	86	261	0.17
  SUP200	Unidirectional	200	99	299	0.194
  SUP250	Unidirectional	250	123	373	0.243
  SUP300	Unidirectional	300	176	476	0.315
  MUP075	Unidirectional	75	37	112	0.073
  MUP100	Unidirectional	100	49	149	0.097
  MUP125	Unidirectional	125	62	187	0.122
  MUP150	Unidirectional	150	74	224	0.146
  MUP175	Unidirectional	175	86	261	0.17
  MUP200	Unidirectional	200	99	299	0.194
  MUP250	Unidirectional	250	123	373	0.243

• Resin-G3

  Coming Soon
